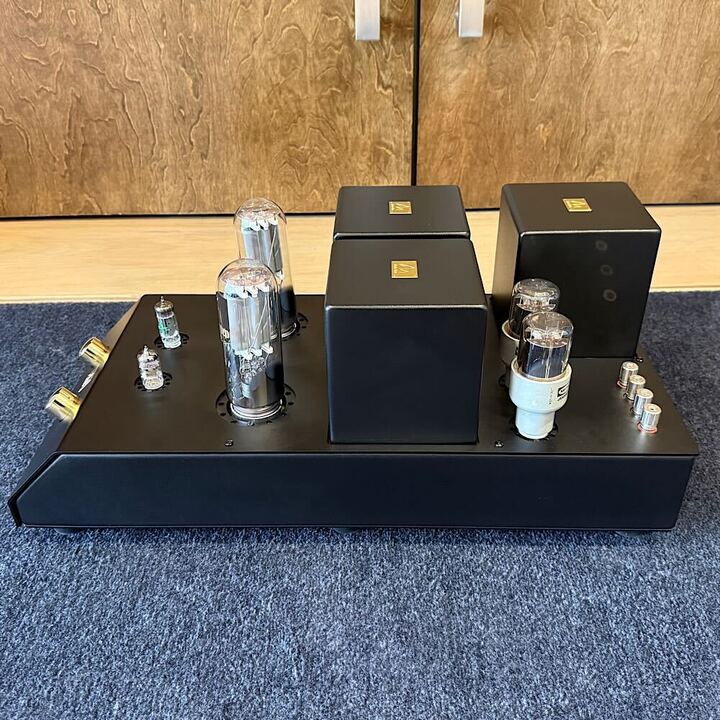

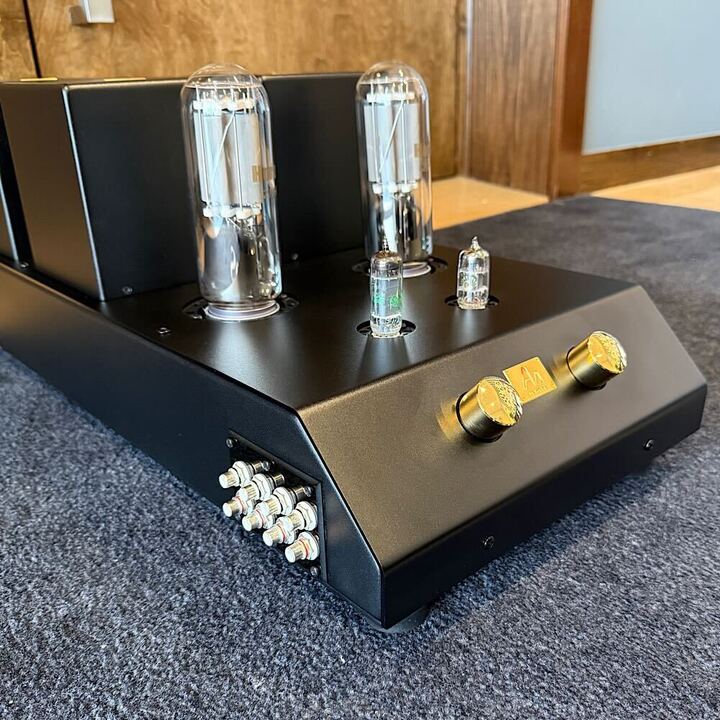

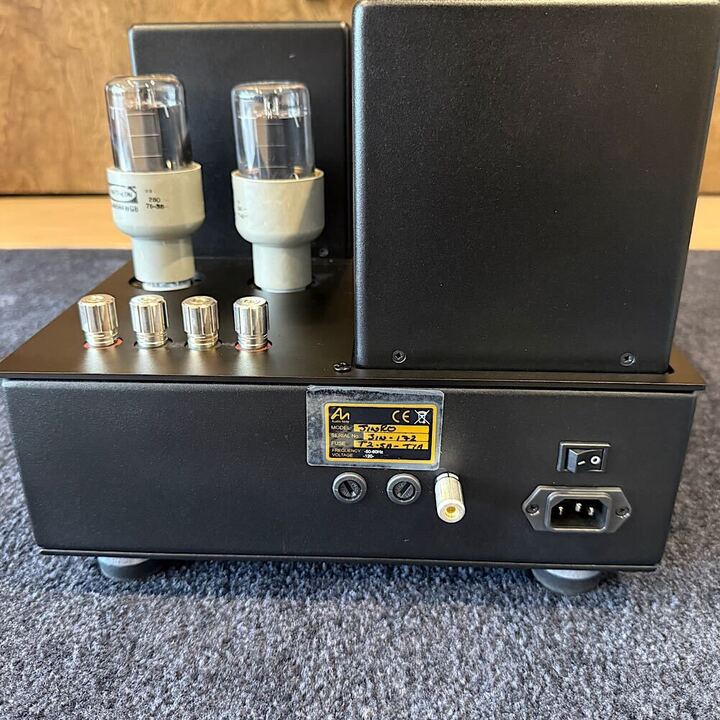

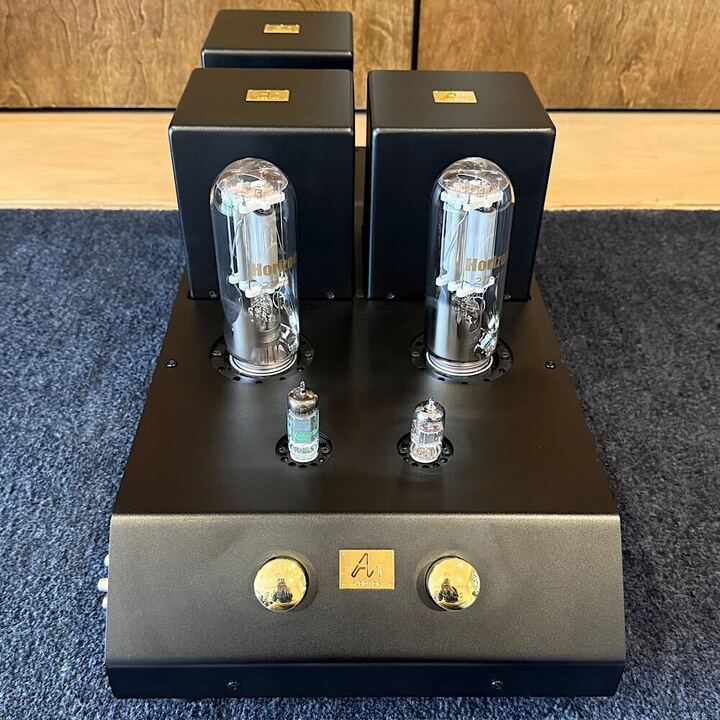

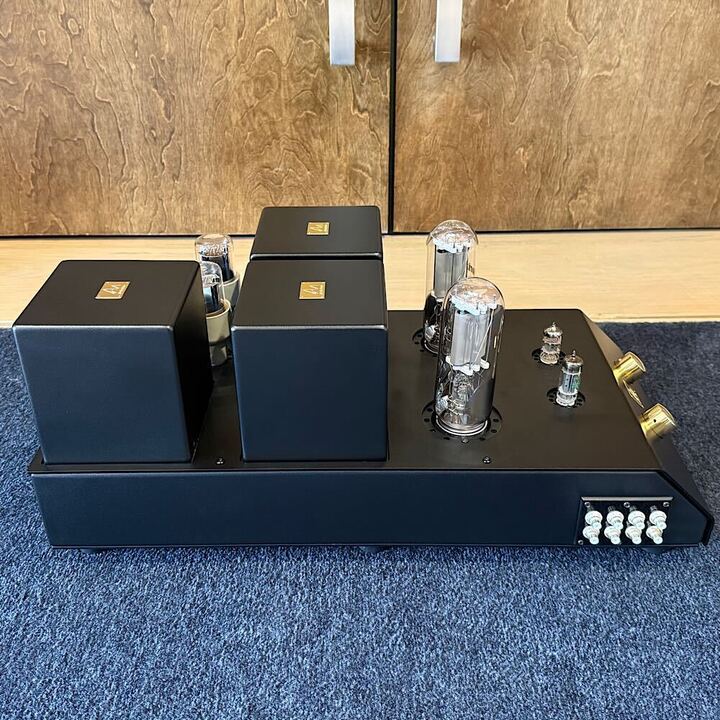

The Audio Note (UK) JINRO Integrated Amplifier iis a Pure Class A Singled Ended valve amplifier that uses the highly regarded 211 triode valve, producing a level of performance that is radically superior to the vast majority of current designs.

OVERVIEW

Very Good condition pre-owned Audio Note Jinro Integrated Amplifier

Original packaging, manual, and power cable.

Rated 8/10 for minor cosmetic wear consistent with age and use.

SPECIFICATIONS

• Topology: Single-ended triode (SET), pure Class A, zero negative feedback
• Output Power: ~20W per channel (4Ω / 8Ω)
• Output Tubes: 2 × 211 (directly heated triodes)
• Rectifier Tubes: 2 × 5R4WGB
• Driver/Input Tubes: ECC82 / 5814A, 7044
• Inputs: 4 × RCA line-level
• Signal-to-Noise Ratio: ~44–62 dB unweighted (up to ~80 dB A-weighted)
• THD Behavior: Dominated by 2nd harmonic; reaches ~1% well below max rated power

• Power Consumption: ~200W max
• Mains: 100–120V / 220–240V, 50/60Hz
• Dimensions: 305 × 305 × 640 mm
• Weight: ~38 kg
• Design Notes: Copper-wound transformers (vs. silver in Ongaku), Level 3 components



ADDITIONAL INFORMATION

Please call 734.662.3595 and ask for Richard if you have any questions about this product.

We make every effort to update our ads quickly when inventory fluctuates, but we encourage you to call and check product availability, as we are also a brick and mortar store.
