Third-generation optical cartridge mechanism

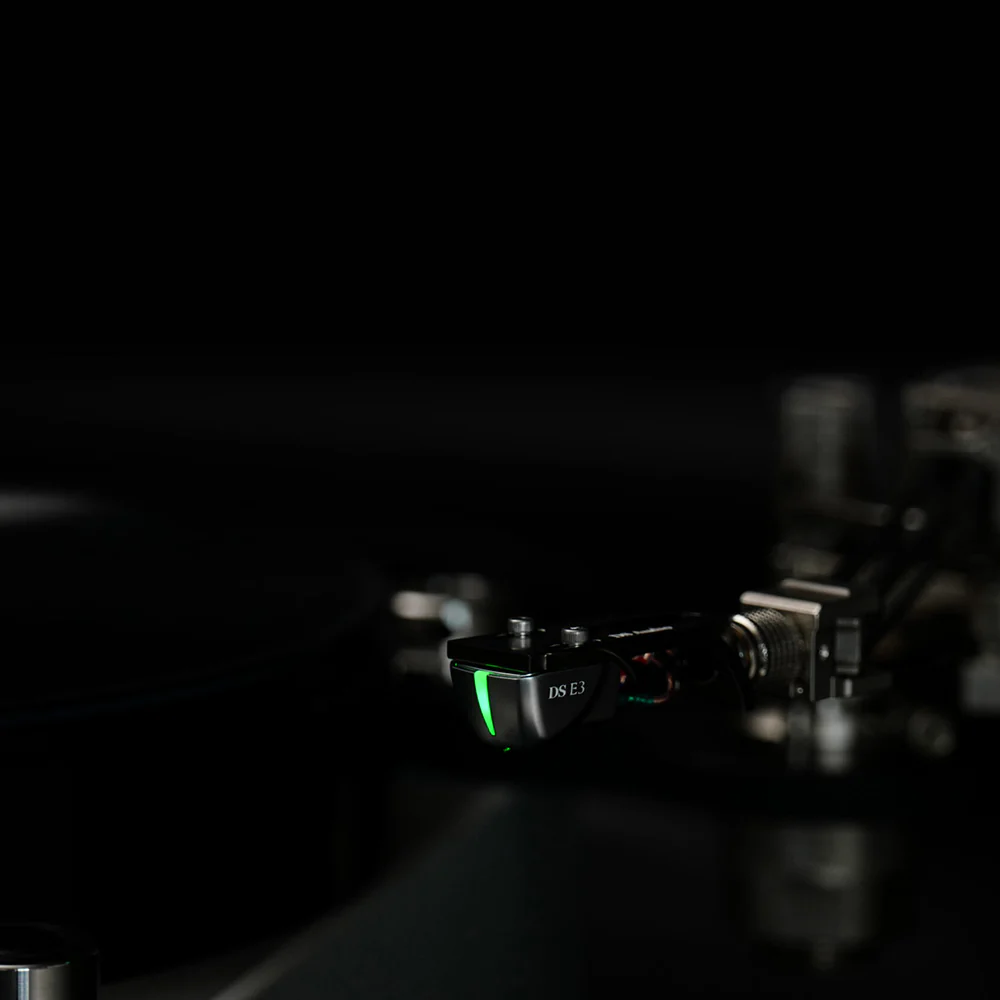

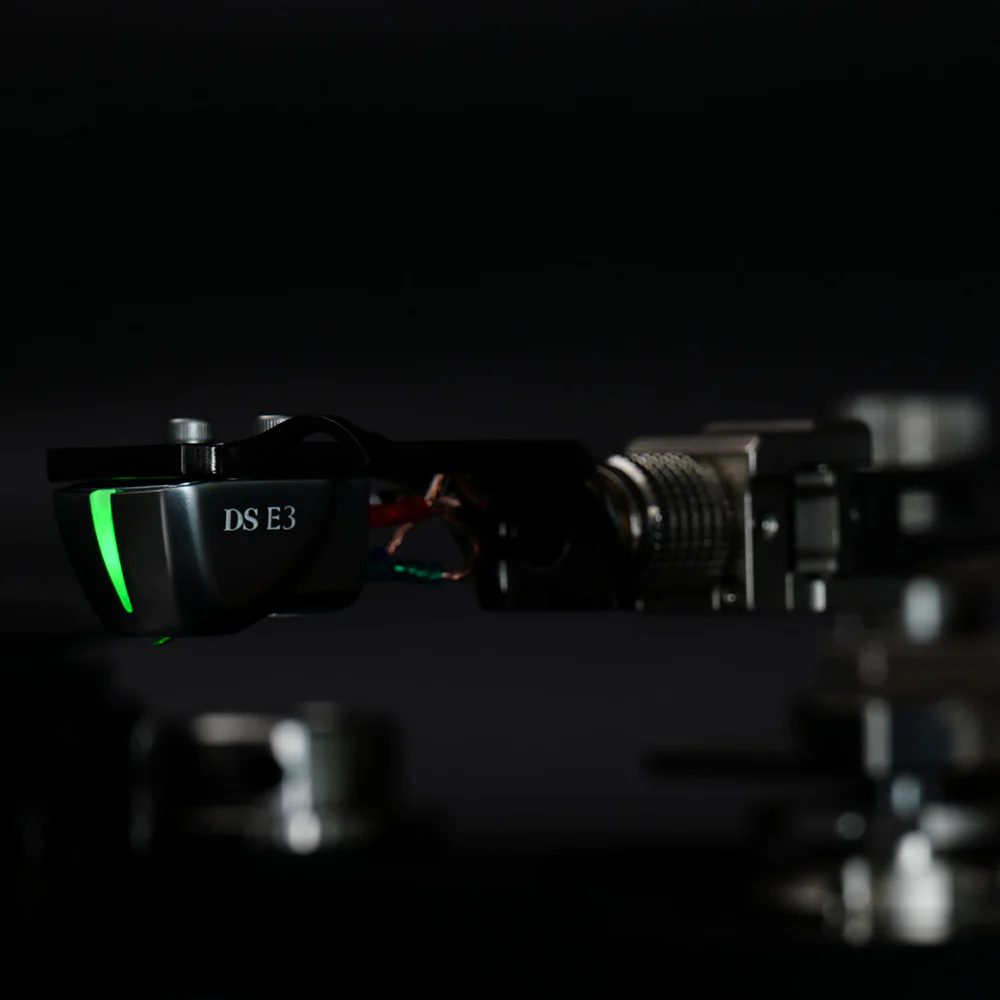

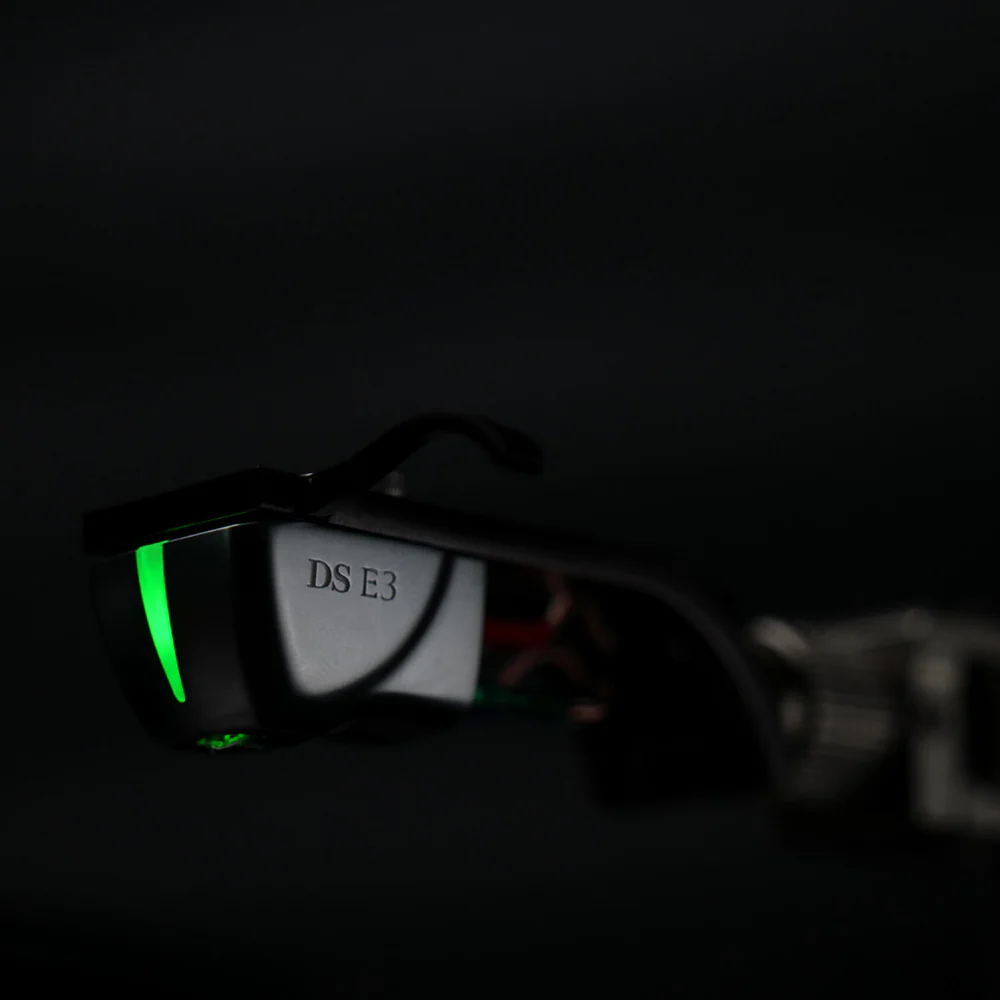

The DS-E3 uses a third-generation optical cartridge mechanism, the same design as DS Audio’s other products.

OVERVIEW

The DS-E3 achieves an overwhelmingly low price while inheriting the merits of the third-generation mechanism, such as higher output due to independent LED and PD (photodiode), improved channel separation, and the use of a beryllium light shielding plate.

FEATURES

Aluminum cantilever with elliptical needle
The cantilever is made of aluminum, and the tip of the needle is a solid elliptical needle. While adopting the third-generation optical cartridge mechanism, the channel separation is set at 1 dB lower to improve mass production efficiency.

THE EQUALIZER

New Amplification and Power Supply Circuits
The DS-E3 equalizer's amplification circuit has been made symmetrical, and the voltage supplied to the cartridge has been stabilized to achieve a clearer and faster sound.

Miniaturization is achieved by using an operational amplifier
The DS-E3 equalizer uses an operational amplifier as the amplifying element to minimize the signal path, thereby greatly reducing the number of components and achieving a smaller size. As a result, the DS-E3 equalizer is about 1/3 the size of the DS003 equalizer.

SPECIFICATIONS



• Signal Output: Photo-electric Conversion
• Channel separation: 26dB or greater (@1kHz)
• Weight: 7.7g
• Output Signal Level: 50mV or more
• Cantilever: Aluminum
• Body Material: Aluminum
• Needle Type: Nude Elliptical
• Needle Pressure: 2.0g-2.2g (2.1g is recommended)
