A formidable, entry-level moving coil cartridge

OVERVIEW

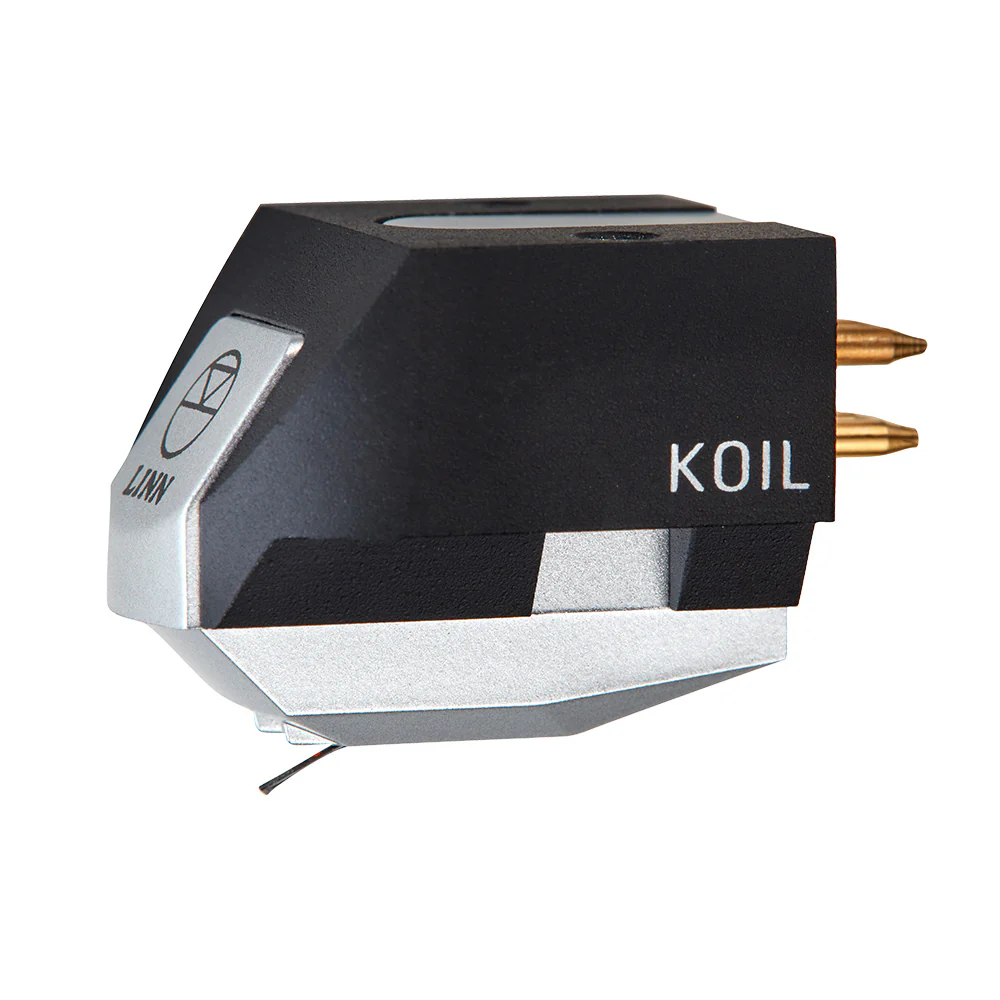

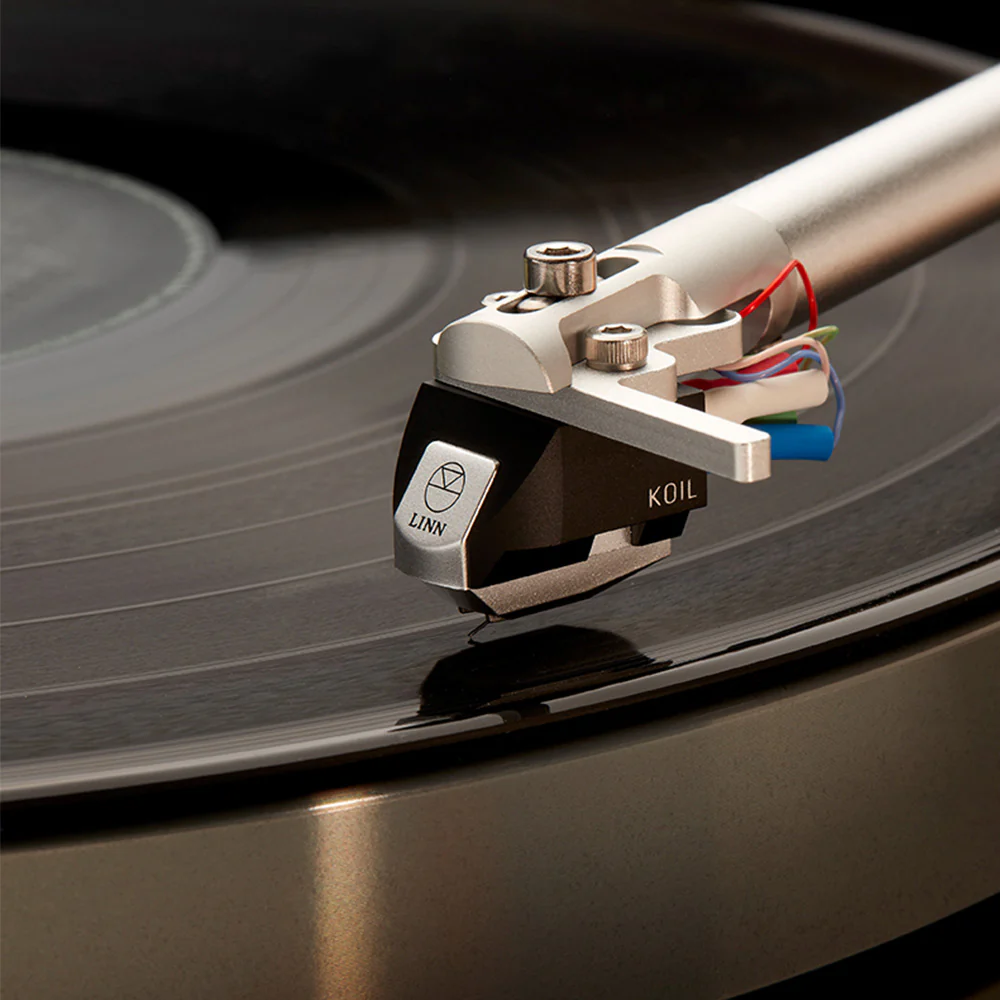

Koil is a superb first step onto the ladder of premium moving coil cartridges. This Majik-level cartridge provides a step up in performance from Adikt; and is available either as an upgrade, or fitted as standard to a new Majik LP12 MC.

Choose Koil if you intend to use your Majik LP12 with a moving coil phono preamplifier. Upgrade from Adikt to progress your journey along the path to vinyl playback perfection.

SPECIFICATIONS

• Stylus Type: Nude Microlinear
• Cantilever: Boron
• Armature: Trapezial
• Coil Wire: Copper
• Pin Connection Type: 1.2mm gold pin
• Mounting Points: 2
• Output Voltage: 0.4mV @ 5cm/s
• Channel Balance at 1 kHz: 1.0dB
• Channel Separation at 1kHz: 27dB
• Load Resistance: 100 Ω
• Load Capacitance: 1 nF
• Tracking Force: 1.8-2.2 g (2.0 g nom)
• Cartridge Mass: 7.6 g
