ATOLL CD200 Evolution Player
The Evolution Series CD players benefit from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.
OVERVIEW
The Atoll CD200 Evolution is a high-end CD player crafted in France, designed for audiophiles seeking exceptional sound quality and versatility. It features a Burr-Brown PCM1792A DAC with 24-bit/192 kHz resolution, delivering a dynamic range and signal-to-noise ratio of 129 dB. With its robust power supply architecture, including a 30 VA transformer for digital stages and a 10 VA transformer for audio stages, the CD200 Evolution ensures precise and dynamic audio reproduction. Additionally, it offers compatibility with various disc formats and an optional 24-bit/192 kHz digital input board for enhanced connectivity.
FEATURES
- 8 mm brushed aluminum front panel
- 10 regulated power supplies, including a specific low-noise one for the converter
- Linear power supply for digital stages with specific 30 VA transformer
- Separate 10 VA transformer for audio stages
- 1.6 VA transformer (low consumption)
- Original TEAC central CD mechanics (latest generation)
- Pure audio CD player compatible with:
- CD
- CD-R
- CD-RW
- MP3
- WMA-AAC
- Double-sided circuit board with nickel/gold finish
-
BURR-BROWN PCM1792A converter:
- 24-bit/192 kHz
- Dynamic range: 129 dB
- Signal-to-noise ratio: 129 dB
- Low-power OLED display
- CD-Text display
- Differential audio output stages with discrete components biased in Class A
- ATOLL global remote control
- Optional 24-bit/192 kHz digital card for all Evolution series CD players
-

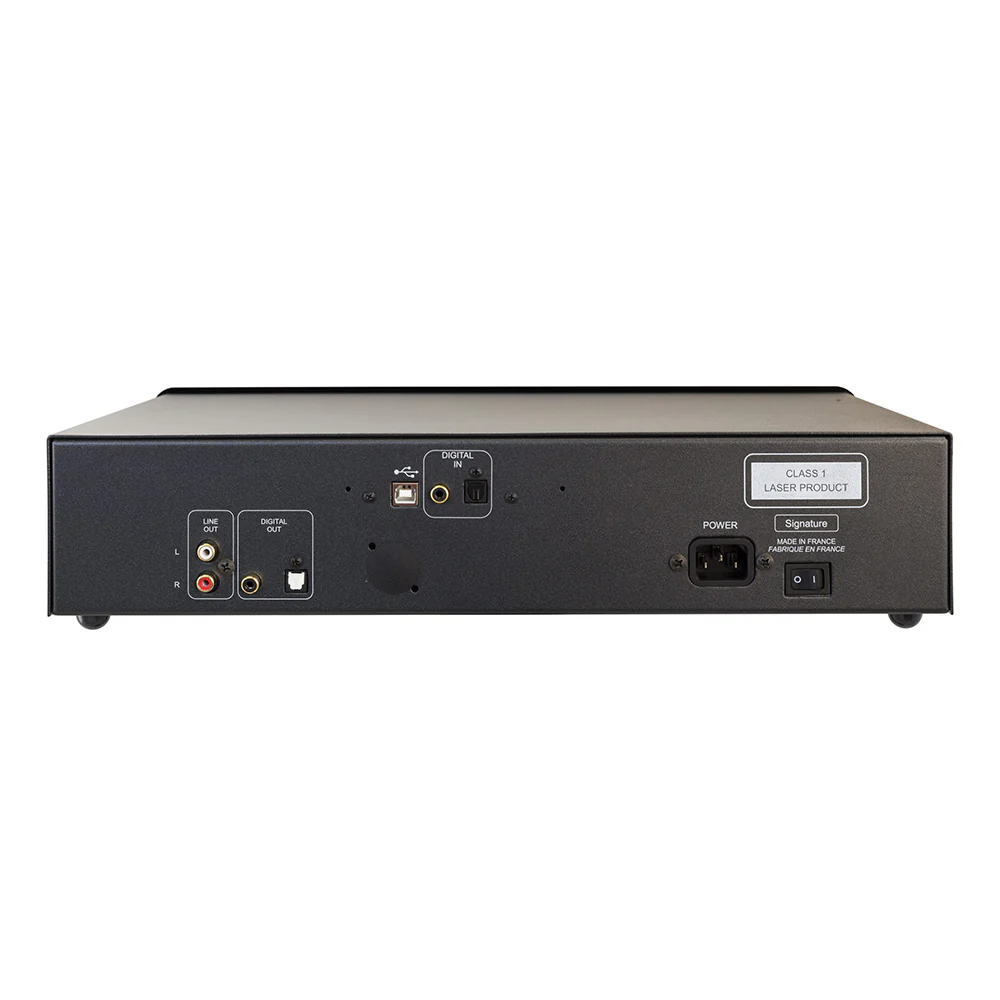

Outputs:
- 1 Line digital output (Right & Left)
- 1 Coaxial digital output (to a D/A converter)
- 1 Optical digital output (to a D/A converter)
- 12V Trigger output
-
Optional Digital Board:
- USB input (Type B)
- Digital input (Coaxial)
- Digital input (Optical)
SPECIFICATIONS
- Power Supply: 30 + 10 + 1.6 VA
- Total Capacitance: 21,450 µF
- D/A Converter: PCM1792A
- Dynamic Range: 129 dB
- Signal-to-Noise Ratio: 129 dB
- Distortion at 1 kHz: 0.0004%
- Output Level: 2.65 Vrms
- Output Impedance: 5.6 Ω
- Bandwidth: 5 Hz – 20 kHz
- Rise Time: 2.0 µs
- Standby Power Consumption: < 0.5 W
- Operating Power Consumption: 10 to 19 W
- Dimensions (W × D × H): 440 × 284 × 95 mm
- Weight: 7 kg
