The AM100 Signature block is suitable for most HIFI or audio-video applications. Coupled with a PR200 Signature, listening is transparent and detailed, and the different shots are rigorously respected. Very scalable, it can be used alone or in bi-amplification. The amplifier is bridgeable in a monoblock via an internal switch. It is equipped as standard with a 12V Trigger input (direct ignition in conjunction with a preamp).

OVERVIEW

The ATOLL AM100 is a stereo power amplifier designed to deliver high-quality sound and plenty of power to drive even the most demanding speakers. With a power output of up to 2x100W into 8 ohms, it is a great choice for a wide range of audio systems, from entry-level to high-end.

FEATURES

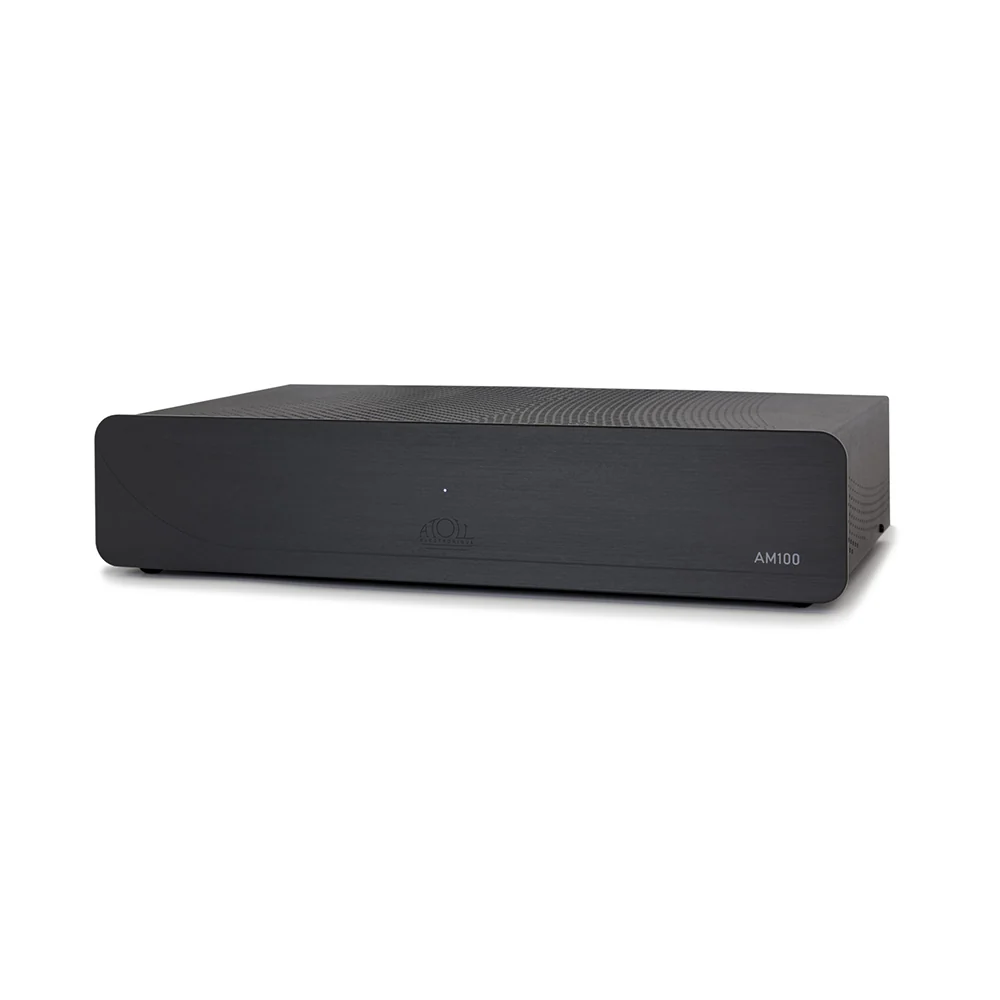

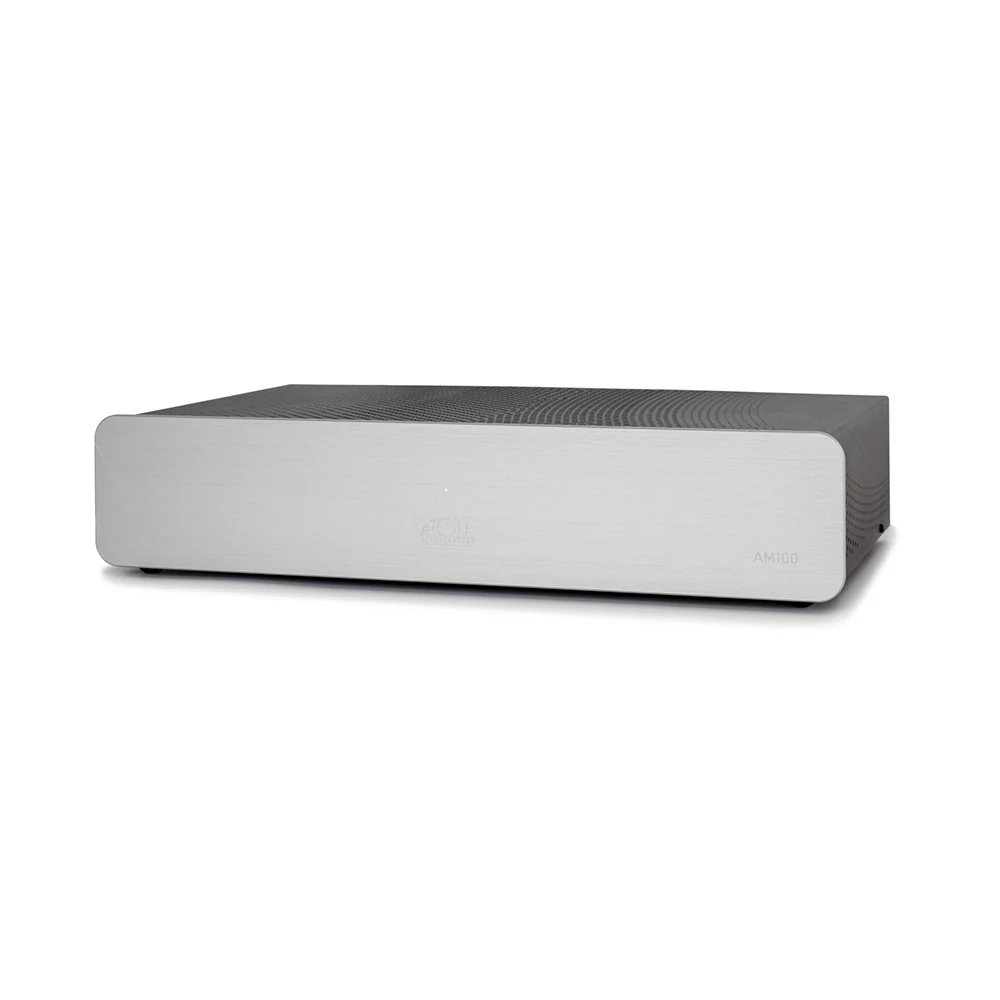

• 4 mm brushed aluminium front.
• 2×100Wrms / 8Ω
• 2 toroidal transformers of 340 VA each.
• Filter capacitors: 4×6800 μF.
• Balanced discrete component audio stages.
• MOS-FET power transistor.
• Polarization of output stages in class A/B.
• Double-sided circuit boards with nickel/gold finish.
• Monoblock bridgeable.

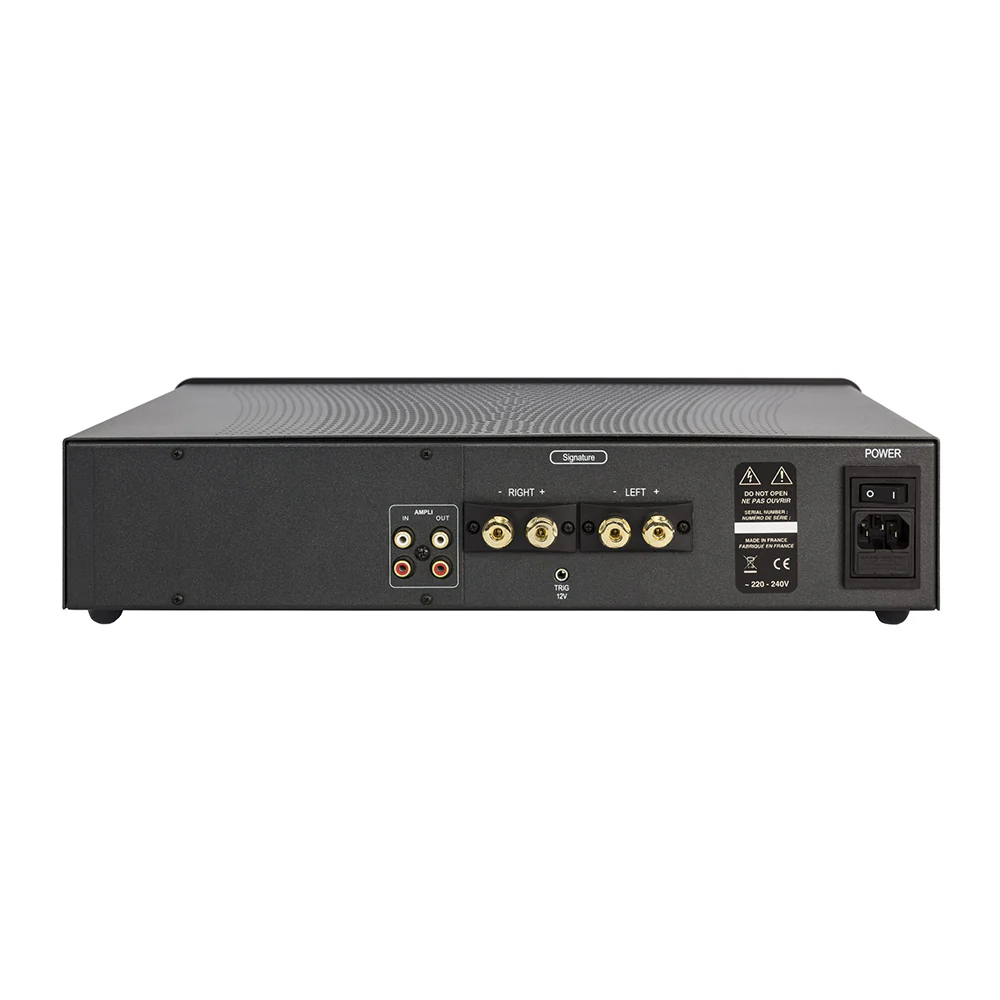

• 12V Trigger input.

SPECIFICATIONS

• Power Wrms/channel/8 Ω: 100 W (1×150 W in mono)
• Power Wrms/channel/4 Ω: 140 W (1×165 W in mono)
• Pulse power: 180 W / channel
• Power supply: 2×340VA
• Total of capacitors: 32,247 µF
• Number of entries: 2
• Input impedance: 47 kΩ
• Sensitivity: 1,77V
• Signal/Noise ratio: 100 dBA
• Distortion rate at 1 kHz: 0,05% / (10 W)
• Bandwidth: 5 Hz – 100 kHz
• Rising time: 1,3 µs
• Dimensions: 440×291×95 mm
• Weight: 11 Kg
