The Evolution series CD drives benefit from numerous innovations in terms of power supplies or digital output stages. The mechanics have received specific anti-vibration treatment.

OVERVIEW

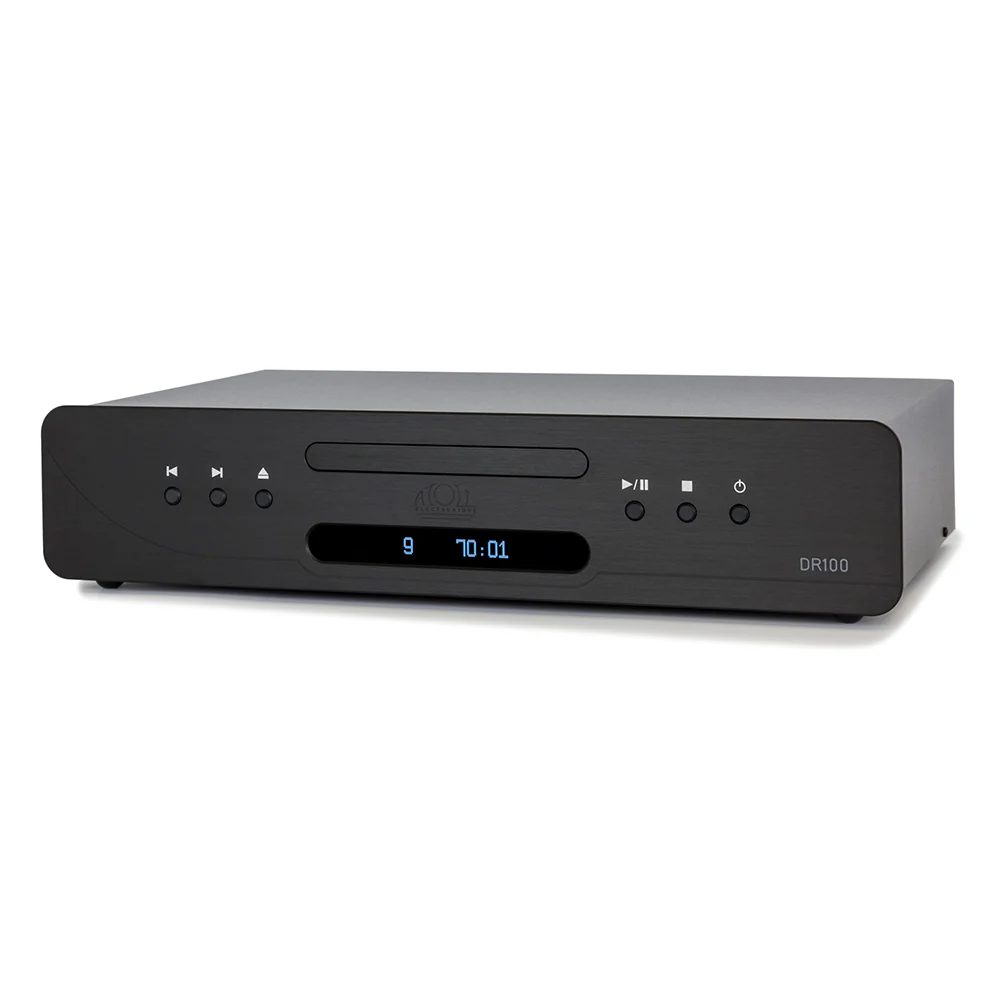

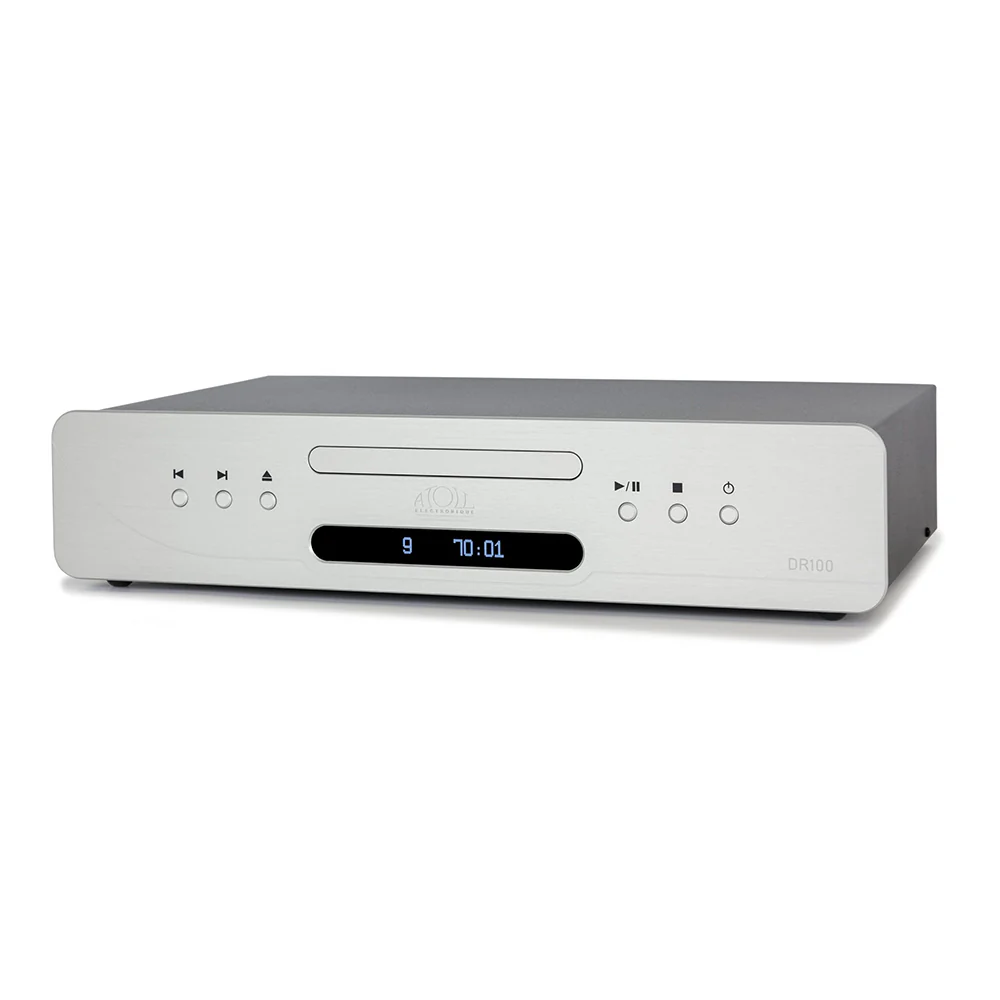

The Atoll DR100 Evolution is a high-performance CD transport designed for audiophiles seeking precise digital playback. It features a TEAC CD-5020B mechanism with anti-vibration treatment, a 30 VA linear power supply, and LVDS-based digital signal isolation to minimize jitter and distortion. With coaxial and optical digital outputs, it seamlessly integrates with external DACs, delivering clean, accurate audio reproduction.

FEATURES

• 4 mm brushed aluminium front panel
• Linear power supply for digital stages with a specific 30 VA transformer
• 1.6 VA transformer (low consumption)
• Specific anti-vibration treatment for CD mechanics
• Board optimized for jitter reduction
• Digital signal isolation by LVDS circuit (signal reformatting)
• Pure audio CD player compatible with:
  • CD
  • CD-R
  • CD-RW
  • MP3
  • WMA-AAC
• Original TEAC central CD mechanics (latest generation)
• Double-sided printed circuits with nickel/gold finish
• Low-power OLED display
• CD-Text display
• ATOLL global remote control

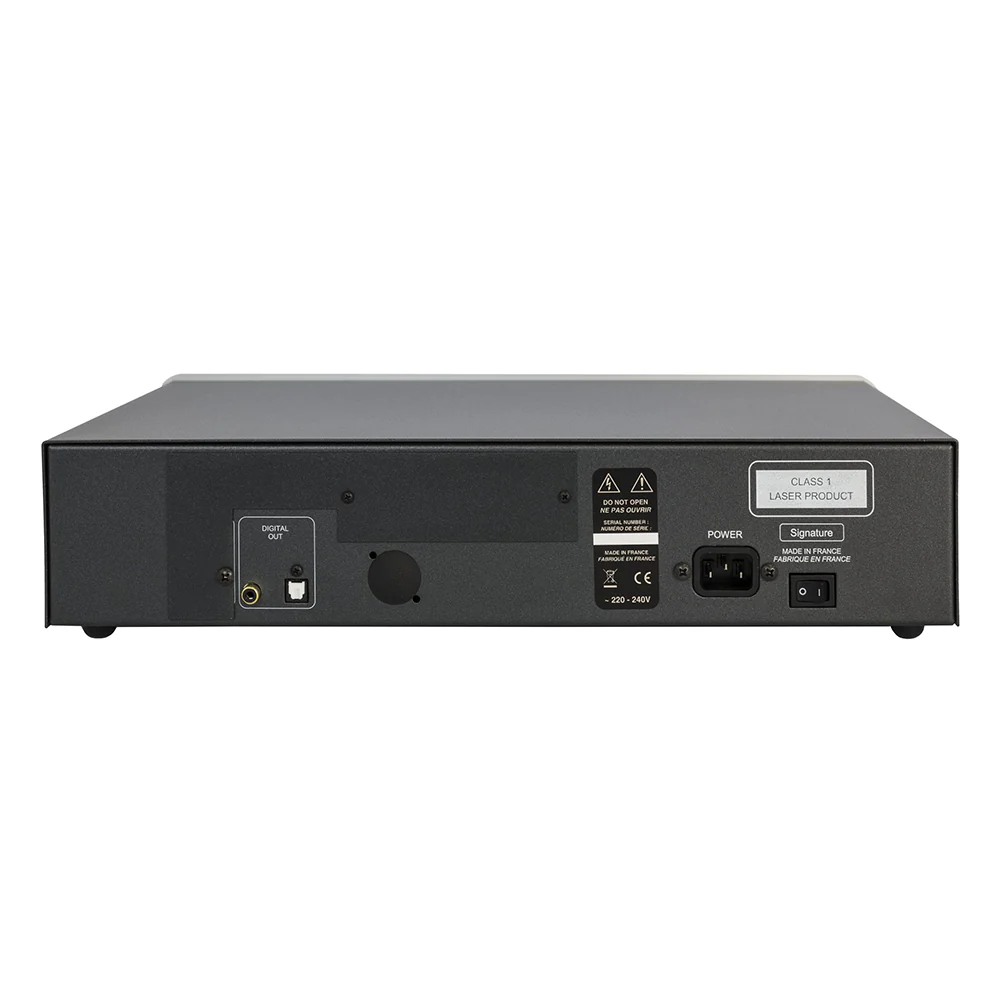

• Outputs:
  • 1 Coaxial digital output
  • 1 Optical digital output
  • 1 12V Trigger output

SPECIFICATIONS

• Power Supply: 30 + 1.6 VA
• Total Capacitance: 15,000 µF
• Output Signal Amplitude: 1 V
• Standby Power Consumption: < 0.5 W
• Operating Power Consumption: 4 to 12 W
• Dimensions (W × D × H): 440 × 280 × 95 mm
• Weight: 6 kg
